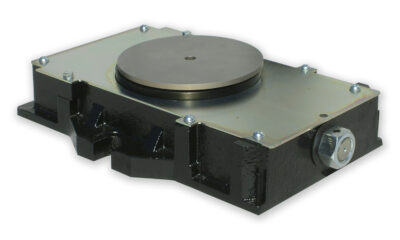

Farrat Wedgemounts
Stable, adjustable levelling mounts with anti-vibration variants.
Our high quality wedge levelling mounts are the ideal solution for accurate, efficient and economical levelling of a wide variety of machinery and equipment. Whether you are relocating existing machinery, are a machine manufacturer, or simply require a better solution for your existing installation, Farrat can help.
Farrat Wedgemounts are designed to cover all standard requirements and are available in 10 sizes, offering load capacities up to 25 tonne per mount. We provide three standard damping options, three installation options and a range of suitable accessories including Screw Assemblies, Anti-Vibration Washers and Spheriseats.
Farrat Wedgemount Range
Farrat Freestanding (F)
The machine rests on the Wedgemount with no bolted connection. The top pad aids damping and provides a high friction surface for the machine foot to grip to. Grade A – Standard Grade B – Stiff Grade E – Very Stiff
GRADE A – Standard Damping Grade
| Size | Part Ref (Click to Download Data Sheet) | Load (Kg) | L (mm) | W (mm) | H (mm) | N± (mm) | AF (mm) | Mass (Kg) |
| 1R | 1WL-F-1R-A | 1,000 | 115 | 80 | 60 | 5 | 17/8 | 2.1 |
| 2R | 1WL-F-2R-A | 900 | 150 | 75 | 60 | 5 | 19/10 | 2.8 |
| 2S | 1WL-F-2S-A | 1,300 | 115 | 115 | 66 | 6 | 19/10 | 3.6 |
| 3R | 1WL-F-3R-A | 1,900 | 200 | 95 | 66 | 6 | 22/12 | 5.4 |
| 3S | 1WL-F-3S-A | 2,300 | 150 | 150 | 66 | 6 | 19/10 | 6.0 |
| 4S | 1WL-F-4S-A | 4,000 | 200 | 200 | 66 | 6 | 22/12 | 10.4 |
| 5R | 1WL-F-5R-A | 3,000 | 250 | 115 | 90 | 9 | 24/12 | 12.6 |
| 5S | 1WL-F-5S-A | 5,000 | 200 | 200 | 92 | 10 | 30/17 | 14.7 |
| 6R | 1WL-F-6R-A | 6,000 | 200 | 250 | 92 | 10 | 30/17 | 18.3 |
| 7R | 1WL-F-7R-A | 9,000 | 250 | 330 | 90 | 9 | 30/17 | 31.2 |
GRADE B – Stiff Damping Grade
| Size | Part Ref (Click to Download Data Sheet) | Load (Kg) | L (mm) | W (mm) | H (mm) | N± (mm) | AF (mm) | Mass (Kg) |
| 1R | 1WL-F-1R-B | 1,300 | 115 | 80 | 47 | 5 | 17/8 | 1.9 |
| 2R | 1WL-F-2R-B | 1,200 | 150 | 75 | 47 | 5 | 19/10 | 2.6 |
| 2S | 1WL-F-2S-B | 1,600 | 115 | 115 | 53 | 6 | 19/10 | 3.3 |
| 3R | 1WL-F-3R-B | 2,200 | 200 | 95 | 53 | 6 | 22/12 | 5.0 |
| 3S | 1WL-F-3S-B | 3,000 | 150 | 150 | 53 | 6 | 19/10 | 5.5 |
| 4S | 1WL-F-4S-B | 5,000 | 200 | 200 | 53 | 6 | 22/12 | 9.4 |
| 5R | 1WL-F-5R-B | 4,000 | 250 | 115 | 77 | 9 | 24/12 | 11.9 |
| 5S | 1WL-F-5S-B | 6,000 | 200 | 200 | 79 | 10 | 30/17 | 13.7 |
| 6R | 1WL-F-6R-B | 7,000 | 200 | 250 | 79 | 10 | 30/17 | 17.4 |
| 7R | 1WL-F-7R-B | 10,000 | 250 | 330 | 77 | 9 | 30/17 | 29.5 |
GRADE E – Very Stiff Damping Grade
| Size | Part Ref (Click to Download Data Sheet) | Load (Kg) | L (mm) | W (mm) | H (mm) | N± (mm) | AF (mm) | Mass (Kg) |
| 1R | 1WL-F-1R-E | 3,000 | 115 | 80 | 44 | 5 | 17/8 | 1.9 |
| 2R | 1WL-F-2R-E | 3,000 | 150 | 75 | 44 | 5 | 19/10 | 2.5 |
| 2S | 1WL-F-2S-E | 4,000 | 115 | 115 | 50 | 6 | 19/10 | 3.3 |
| 3R | 1WL-F-3R-E | 6,000 | 200 | 95 | 50 | 6 | 22/12 | 4.9 |
| 3S | 1WL-F-3S-E | 7,000 | 150 | 150 | 50 | 6 | 19/10 | 5.3 |
| 4S | 1WL-F-4S-E | 12,000 | 200 | 200 | 50 | 6 | 22/12 | 9.2 |
| 5R | 1WL-F-5R-E | 9,000 | 250 | 115 | 74 | 9 | 24/12 | 11.8 |
| 5S | 1WL-F-5S-E | 12,000 | 200 | 200 | 76 | 10 | 30/17 | 13.5 |
| 6R | 1WL-F-6R-E | 14,000 | 200 | 250 | 76 | 10 | 30/17 | 17.1 |
| 7R | 1WL-F-7R-E | 25,000 | 250 | 330 | 74 | 9 | 30/17 | 29.0 |
Farrat Bolt-On (B)
The machine is bolted to the Wedgemount which sits on the floor ensuring a fixed connection between the Wedgemount and machine. This helps with machine installation as the Wedgemount can be fitted to the machine prior to final machine placement.
GRADE F – Standard Damping Grade
| Size | Part Ref (Click to Download Data Sheet) | Load (Kg) | L (mm) | W (mm) | H (mm) | N± (mm) | AF (mm) | Thread (C) | D (mm) | E (mm) | Mass (Kg) |
| 1R | 1WL-B-1R-F | 900 | 115 | 80 | 55 | 5 | 17/8 | M12 | 45 | 17 | 2.1 |
| 2S | 1WL-B-2S-F | 1,300 | 115 | 115 | 61 | 6 | 19/10 | M16 | 50 | 24 | 3.5 |
| 3S | 1WL-B-3S-F | 2,300 | 150 | 150 | 61 | 6 | 19/10 | M20 | 60 | 24 | 5.8 |
| 4S | 1WL-B-4S-F | 4,000 | 200 | 200 | 61 | 6 | 22/12 | M20 | 75 | 27 | 10.0 |
| 5S | 1WL-B-5S-F | 5,000 | 200 | 200 | 87 | 10 | 30/17 | M20 | 97 | 27 | 14.3 |
| 6R | 1WL-B-6R-F | 6,000 | 200 | 250 | 87 | 10 | 30/17 | M20 | 95 | 27 | 17.9 |
| 7R | 1WL-B-7R-F | 9,000 | 250 | 330 | 85 | 9 | 30/17 | M24 | 125 | 105 | 30.5 |
GRADE G – Stiff Damping Grade
| Size | Part Ref (Click to Download Data Sheet) | Load (Kg) | L (mm) | W (mm) | H (mm) | N± (mm) | AF (mm) | Thread (C) | D (mm) | E (mm) | Mass (Kg) |
| 1R | 1WL-B-1R-G | 1,200 | 115 | 80 | 45 | 5 | 17/8 | M12 | 45 | 17 | 1.9 |
| 2S | 1WL-B-2S-G | 1,600 | 115 | 115 | 51 | 6 | 19/10 | M16 | 50 | 24 | 3.5 |
| 3S | 1WL-B-3S-G | 3,000 | 150 | 150 | 51 | 6 | 19/10 | M20 | 60 | 24 | 5.4 |
| 4S | 1WL-B-4S-G | 5,000 | 200 | 200 | 51 | 6 | 22/12 | M20 | 75 | 27 | 9.3 |
| 5S | 1WL-B-5S-G | 6,000 | 200 | 200 | 77 | 10 | 30/17 | M20 | 97 | 27 | 13.6 |
| 6R | 1WL-B-6R-G | 7,000 | 200 | 250 | 77 | 10 | 30/17 | M20 | 95 | 27 | 16.9 |
| 7R | 1WL-B-7R-G | 10,000 | 250 | 330 | 75 | 9 | 30/17 | M24 | 125 | 105 | 29.2 |
GRADE H – Very Stiff Damping Grade
| Size | Part Ref (Click to Download Data Sheet) | Load (Kg) | L (mm) | W (mm) | H (mm) | N± (mm) | AF (mm) | Thread (C) | D (mm) | E (mm) | Mass (Kg) |
| 1R | 1WL-B-1R-H | 3,000 | 115 | 80 | 42 | 5 | 17/8 | M12 | 45 | 17 | 1.8 |
| 2S | 1WL-B-2S-H | 4,000 | 115 | 115 | 48 | 6 | 19/10 | M16 | 50 | 24 | 3.2 |
| 3S | 1WL-B-3S-H | 7,000 | 150 | 150 | 48 | 6 | 19/10 | M20 | 60 | 24 | 5.3 |
| 4S | 1WL-B-4S-H | 12,000 | 200 | 200 | 48 | 6 | 22/12 | M20 | 75 | 27 | 9.0 |
| 5S | 1WL-B-5S-H | 12,000 | 200 | 200 | 74 | 10 | 30/17 | M20 | 97 | 27 | 13.3 |
| 6R | 1WL-B-6R-H | 14,000 | 200 | 250 | 74 | 10 | 30/17 | M20 | 95 | 27 | 16.8 |
| 7R | 1WL-B-7R-H | 25,000 | 250 | 330 | 72 | 9 | 30/17 | M24 | 125 | 105 | 28.8 |
Farrat Bolt-Through (T)
The machine is bolted through the Wedgemount and into the foundation. This option provides the stiffest connection and is used for large bed / low stiffness machines where the foundation can add to the stiffness of the machine. Anti-vibration washers are required with this option to prevent vibration bridging through the bolted connection.
GRADE F – Standard Damping Grade
| Size | Part Ref (Click to Download Data Sheet) | Load (Kg) | L (mm) | W (mm) | H (mm) | N± (mm) | AF (mm) | Hole size (mm) | D (mm) | E (mm) | Mass (Kg) |
| 1R | 1WL-T-1R-F | 900 | 115 | 80 | 55 | 5 | 17/8 | 14 | 45 | 17 | 2.1 |
| 2S | 1WL-T-2S-F | 1,300 | 115 | 115 | 61 | 6 | 19/10 | 18 | 50 | 24 | 3.5 |
| 3S | 1WL-T-3S-F | 2,300 | 150 | 150 | 61 | 6 | 19/10 | 23 | 60 | 24 | 5.8 |
| 4S | 1WL-T-4S-F | 4,000 | 200 | 200 | 61 | 6 | 22/12 | 23 | 75 | 27 | 10.0 |
| 5S | 1WL-T-5S-F | 5,000 | 200 | 200 | 87 | 10 | 30/17 | 22 | 97 | 27 | 14.3 |
| 6R | 1WL-T-6R-F | 6,000 | 200 | 250 | 87 | 10 | 30/17 | 24 | 95 | 27 | 17.9 |
| 7R | 1WL-T-7R-F | 9,000 | 250 | 330 | 85 | 9 | 30/17 | 26 | 125 | 105 | 30.5 |
GRADE G – Stiff Damping Grade
| Size | Part Ref (Click to Download Data Sheet) | Load (Kg) | L (mm) | W (mm) | H (mm) | N± (mm) | AF (mm) | Hole size (mm) | D (mm) | E (mm) | Mass (Kg) |
| 1R | 1WL-T-1R-G | 1,200 | 115 | 80 | 45 | 5 | 17/8 | 14 | 45 | 17 | 1.9 |
| 2S | 1WL-T-2S-G | 1,600 | 115 | 115 | 51 | 6 | 19/10 | 18 | 50 | 24 | 3.5 |
| 3S | 1WL-T-3S-G | 4,000 | 150 | 150 | 51 | 6 | 19/10 | 23 | 60 | 24 | 5.4 |
| 4S | 1WL-T-4S-G | 5,000 | 200 | 200 | 51 | 6 | 22/12 | 23 | 75 | 27 | 9.3 |
| 5S | 1WL-T-5S-G | 6,000 | 200 | 200 | 77 | 10 | 30/17 | 22 | 97 | 27 | 13.6 |
| 6R | 1WL-T-6R-G | 7,000 | 200 | 250 | 77 | 10 | 30/17 | 24 | 95 | 27 | 16.9 |
| 7R | 1WL-T-7R-G | 10,000 | 250 | 330 | 75 | 9 | 30/17 | 26 | 125 | 105 | 29.2 |
GRADE H – Very Stiff Damping Grade
| Size | Part Ref (Click to Download Data Sheet) | Load (Kg) | L (mm) | W (mm) | H (mm) | N± (mm) | AF (mm) | Hole size (mm) | D (mm) | E (mm) | Mass (Kg) |
| 1R | 1WL-T-1R-H | 3,000 | 115 | 80 | 42 | 5 | 17/8 | 14 | 45 | 17 | 1.8 |
| 2S | 1WL-T-2S-H | 4,000 | 115 | 115 | 48 | 6 | 19/10 | 18 | 50 | 24 | 3.2 |
| 3S | 1WL-T-3S-H | 7,000 | 150 | 150 | 48 | 6 | 19/10 | 23 | 60 | 24 | 5.3 |
| 4S | 1WL-T-4S-H | 12,000 | 200 | 200 | 48 | 6 | 22/12 | 23 | 75 | 27 | 9.0 |
| 5S | 1WL-T-5S-H | 12,000 | 200 | 200 | 74 | 10 | 30/17 | 22 | 97 | 27 | 13.3 |
| 6R | 1WL-T-6R-H | 14,000 | 200 | 250 | 74 | 10 | 30/17 | 24 | 95 | 27 | 16.9 |
| 7R | 1WL-T-7R-H | 25,000 | 250 | 330 | 72 | 9 | 30/17 | 26 | 125 | 105 | 28.8 |
Features & Benefits
- Enhanced mechanical advantage for easier levelling
- Enhanced machine stability which provides high stiffness and support in both horizontal and vertical directions
- Damping pads reduce vibration within the machine and isolation of the foundation below
- Easy installation and relocation of machines
- Flexibility in applications where high loads and/or damping is required
Machinery Applications
Machine tools, Boring & Milling, CNC lathes, Test equipment, Injection moulding, Printing, Grinding, Transfer, Rolling Mills and Long Bed machinery.
Farrat Wedgemount Accessories
Farrat Spheriseats (SPS)
Spheriseats can be supplied bonded on top of the Precision Levelling Elements units to take up complex angles (from floor irregularities etc) between the floor and the machine. This is important to ensure a full, secure seating and to relieve any stresses which could build up in the machine base.
Alternate dimensions of D3 and D4 can be made to order. Request a quotation below for more information.
| Part Ref | D1 (mm) | D2 (mm) | D3 (mm) | D4 (mm) | H (mm) |
| 1SPS080 | 80 | 80 | 49 | 58 | 18 |
| 1SPS110 | 110 | 110 | 70 | 81 | 24 |
| 1SPS150 | 150 | 150 | 80 | 95 | 30 |
Farrat Bolt-On Screw Assemblies (SN)
Screw Assemblies are offered as an option for the Bolt-On Wedgemount. Material: Zinc plated mild steel. Alternative screw lengths available on request.
| Part Ref | M (thread) | S (mm) | H (mm) | L (mm) |
| 1SN1210 | M12 | 8 | 10 | 100 |
| 1SN1610 | M16 | 11 | 10 | 100 |
| 1SN2010 | M20 | 13 | 10 | 100 |
Alternative screw lengths available on request.
Farrat Anti-vibration Washers (AWR)
Anti-vibration Washers are required for Bolt-Through Wedgemounts with damping pads to prevent the vibration bridging through the holding down bolt. View AWR Washers
| Part Ref | Bolt D (mm) | D1 (mm) | D2 (mm) | H (mm) | Max torque (Nm) | Max bolt tension (kN) | Max deflection (mm) |
| 1AWR12 | 12 | 40 | 13 | 11 | 20 | 8.3 | 0.9 |
| 1AWR16 | 16 | 50 | 17 | 16 | 30 | 9.4 | 1.5 |
| 1AWR20 | 20 | 61 | 21 | 16 | 44 | 11 | 1.5 |
| 1AWR24 | 24 | 65 | 25 | 18 | 54 | 11.2 | 1.5 |
Heavy duty washers available on request.
Need help with your Application?
By their very nature, industrial machinery and equipment will generate shock and vibration which can affect the performance of the machine itself as well propagate through the ground to disturb operators, surroundings such as floors and foundations, building structures, offices and neighbouring residents and businesses etc. Working closely with a trusted global network of industrial distributors and original equipment manufacturers, we have provided solutions to all manner of industrial applications, from full automotive production lines to individual machine tools and HVAC equipment, power presses, roll grinders and printing presses. To find out which Farrat solution is most suitable to your machine, Click Here to view our Industrial Application Guides.
Alternately, our application engineers will be glad to recommend you the optimum levelling solution for your machine application. Complete the form below to submit a technical enquiry to our team.
