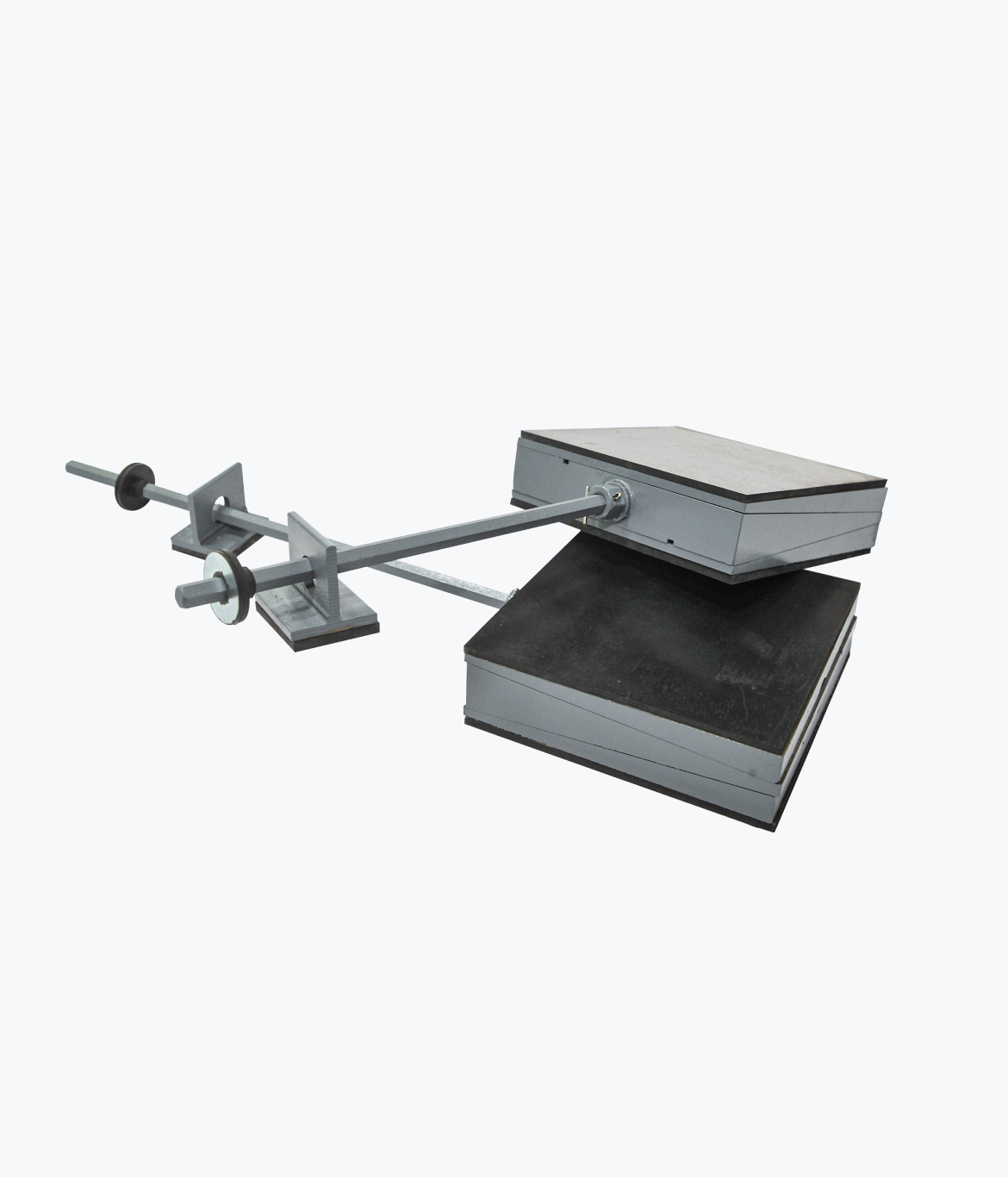

Wedgemounts
Stable, adjustable levelling mounts with anti-vibration variants.
Our high quality wedge levelling mounts are the ideal solution for accurate, efficient and economical levelling of a wide variety of machinery and equipment.
Whether you are relocating existing machinery, are a machine manufacturer, or simply require a better solution for your existing installation, Farrat can help.
Wedgemounts
Farrat Wedgemounts are designed to cover all standard requirements and are available in 10 sizes, offering load capacities up to 25 tonne per mount.
We provide three standard damping options, three installation options and a range of suitable accessories including:
- Bolt-On Screw Assemblies (SN)
- Anti-Vibration Washers (AWR)
- Spheriseats (SPS)
Farrat Freestanding (F)
The machine rests on the Wedgemount with no bolted connection. The top pad aids damping and provides a high friction surface for the machine foot to grip to.
Grade A – Standard
Grade B – Stiff
Grade E – Very Stiff
GRADE A – Standard Damping Grade
| Size | Part Ref | Load (Kg) | L (mm) | W (mm) | H (mm) | N± (mm) | AF (mm) | Mass (Kg) |
|---|---|---|---|---|---|---|---|---|
| 1R | 1WL-F-1R-A | 1,000 | 115 | 80 | 60 | 5 | 17/8 | 2.1 |
| 2R | 1WL-F-2R-A | 900 | 150 | 75 | 60 | 5 | 19/10 | 2.8 |
| 2S | 1WL-F-2S-A | 1,300 | 115 | 115 | 66 | 6 | 19/10 | 3.6 |
| 3R | 1WL-F-3R-A | 1,900 | 200 | 95 | 66 | 6 | 22/12 | 5.4 |
| 3S | 1WL-F-3S-A | 2,300 | 150 | 150 | 66 | 6 | 19/10 | 6.0 |
| 4S | 1WL-F-4S-A | 4,000 | 200 | 200 | 66 | 6 | 22/12 | 10.4 |
| 5R | 1WL-F-5R-A | 3,000 | 250 | 115 | 90 | 9 | 24/12 | 12.6 |
| 5S | 1WL-F-5S-A | 5,000 | 200 | 200 | 92 | 10 | 30/17 | 14.7 |
| 6R | 1WL-F-6R-A | 6,000 | 200 | 250 | 92 | 10 | 30/17 | 18.3 |
| 7R | 1WL-F-7R-A | 9,000 | 250 | 330 | 90 | 9 | 30/17 | 31.2 |
GRADE B – Stiff Damping Grade
| Size | Part Ref | Load (Kg) | L (mm) | W (mm) | H (mm) | N± (mm) | AF (mm) | Mass (Kg) |
|---|---|---|---|---|---|---|---|---|
| 1R | 1WL-F-1R-B | 1,300 | 115 | 80 | 47 | 5 | 17/8 | 1.9 |
| 2R | 1WL-F-2R-B | 1,200 | 150 | 75 | 47 | 5 | 19/10 | 2.6 |
| 2S | 1WL-F-2S-B | 1,600 | 115 | 115 | 53 | 6 | 19/10 | 3.3 |
| 3R | 1WL-F-3R-B | 2,200 | 200 | 95 | 53 | 6 | 22/12 | 5.0 |
| 3S | 1WL-F-3S-B | 3,000 | 150 | 150 | 53 | 6 | 19/10 | 5.5 |
| 4S | 1WL-F-4S-B | 5,000 | 200 | 200 | 53 | 6 | 22/12 | 9.4 |
| 5R | 1WL-F-5R-B | 4,000 | 250 | 115 | 77 | 9 | 24/12 | 11.9 |
| 5S | 1WL-F-5S-B | 6,000 | 200 | 200 | 79 | 10 | 30/17 | 13.7 |
| 6R | 1WL-F-6R-B | 7,000 | 200 | 250 | 79 | 10 | 30/17 | 17.4 |
| 7R | 1WL-F-7R-B | 10,000 | 250 | 330 | 77 | 9 | 30/17 | 29.5 |
GRADE E – Very Stiff Damping Grade
| Size | Part Ref | Load (Kg) | L (mm) | W (mm) | H (mm) | N± (mm) | AF (mm) | Mass (Kg) |
|---|---|---|---|---|---|---|---|---|
| 1R | 1WL-F-1R-E | 3,000 | 115 | 80 | 44 | 5 | 17/8 | 1.9 |
| 2R | 1WL-F-2R-E | 3,000 | 150 | 75 | 44 | 5 | 19/10 | 2.5 |
| 2S | 1WL-F-2S-E | 4,000 | 115 | 115 | 50 | 6 | 19/10 | 3.3 |
| 3R | 1WL-F-3R-E | 6,000 | 200 | 95 | 50 | 6 | 22/12 | 4.9 |
| 3S | 1WL-F-3S-E | 7,000 | 150 | 150 | 50 | 6 | 19/10 | 5.3 |
| 4S | 1WL-F-4S-E | 12,000 | 200 | 200 | 50 | 6 | 22/12 | 9.2 |
| 5R | 1WL-F-5R-E | 9,000 | 250 | 115 | 74 | 9 | 24/12 | 11.8 |
| 5S | 1WL-F-5S-E | 12,000 | 200 | 200 | 76 | 10 | 30/17 | 13.5 |
| 6R | 1WL-F-6R-E | 14,000 | 200 | 250 | 76 | 10 | 30/17 | 17.1 |
| 7R | 1WL-F-7R-E | 25,000 | 250 | 330 | 74 | 9 | 30/17 | 29.0 |
Farrat Bolt-On (B)
The machine is bolted to the Wedgemount which sits on the floor ensuring a fixed connection between the Wedgemount and machine.
This helps with machine installation as the Wedgemount can be fitted to the machine prior to final machine placement.
Grade A – Standard
Grade B – Stiff
Grade E – Very Stiff
GRADE F – Standard Damping Grade
| Size | Part Ref | Load (Kg) | L (mm) | W (mm) | H (mm) | N± (mm) | AF (mm) | Thread(C) | D(mm) | E(mm) | Mass (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1R | 1WL-B-1R-F | 900 | 115 | 80 | 55 | 5 | 17/8 | M12 | 45 | 17 | 2.1 |
| 2S | 1WL-B-2S-F | 1,300 | 115 | 115 | 61 | 6 | 19/10 | M16 | 50 | 24 | 3.5 |
| 3S | 1WL-B-3S-F | 2,300 | 150 | 150 | 61 | 6 | 19/10 | M20 | 60 | 24 | 5.8 |
| 4S | 1WL-B-4S-F | 4,000 | 200 | 200 | 61 | 6 | 22/12 | M20 | 75 | 27 | 10.0 |
| 5S | 1WL-B-5S-F | 5,000 | 200 | 200 | 87 | 10 | 30/17 | M20 | 97 | 27 | 14.3 |
| 6R | 1WL-B-6R-F | 6,000 | 200 | 250 | 87 | 10 | 30/17 | M20 | 95 | 27 | 17.9 |
| 7R | 1WL-B-7R-F | 9,000 | 250 | 330 | 85 | 9 | 30/17 | M24 | 125 | 105 | 30.5 |
GRADE G – Stiff Damping Grade
| Size | Part Ref | Load (Kg) | L (mm) | W (mm) | H (mm) | N± (mm) | AF (mm) | Thread(C) | D(mm) | E(mm) | Mass (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1R | 1WL-B-1R-G | 1,200 | 115 | 80 | 45 | 5 | 17/8 | M12 | 45 | 17 | 1.9 |
| 2S | 1WL-B-2S-G | 1,600 | 115 | 115 | 51 | 6 | 19/10 | M16 | 50 | 24 | 3.5 |
| 3S | 1WL-B-3S-G | 3,000 | 150 | 150 | 51 | 6 | 19/10 | M20 | 60 | 24 | 5.4 |
| 4S | 1WL-B-4S-G | 5,000 | 200 | 200 | 51 | 6 | 22/12 | M20 | 75 | 27 | 9.3 |
| 5S | 1WL-B-5S-G | 6,000 | 200 | 200 | 77 | 10 | 30/17 | M20 | 97 | 27 | 13.6 |
| 6R | 1WL-B-6R-G | 7,000 | 200 | 250 | 77 | 10 | 30/17 | M20 | 95 | 27 | 16.9 |
| 7R | 1WL-B-7R-G | 10,000 | 250 | 330 | 75 | 9 | 30/17 | M24 | 125 | 105 | 29.2 |
GRADE H – Very Stiff Damping Grade
| Size | Part Ref | Load (Kg) | L (mm) | W (mm) | H (mm) | N± (mm) | AF (mm) | Thread(C) | D(mm) | E(mm) | Mass (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1R | 1WL-B-1R-G | 1,200 | 115 | 80 | 45 | 5 | 17/8 | M12 | 45 | 17 | 1.9 |
| 2S | 1WL-B-2S-G | 1,600 | 115 | 115 | 51 | 6 | 19/10 | M16 | 50 | 24 | 3.5 |
| 3S | 1WL-B-3S-G | 3,000 | 150 | 150 | 51 | 6 | 19/10 | M20 | 60 | 24 | 5.4 |
| 4S | 1WL-B-4S-G | 5,000 | 200 | 200 | 51 | 6 | 22/12 | M20 | 75 | 27 | 9.3 |
| 5S | 1WL-B-5S-G | 6,000 | 200 | 200 | 77 | 10 | 30/17 | M20 | 97 | 27 | 13.6 |
| 6R | 1WL-B-6R-G | 7,000 | 200 | 250 | 77 | 10 | 30/17 | M20 | 95 | 27 | 16.9 |
| 7R | 1WL-B-7R-G | 10,000 | 250 | 330 | 75 | 9 | 30/17 | M24 | 125 | 105 | 29.2 |
Farrat Bolt-Through (T)
The machine is bolted through the Wedgemount and into the foundation. This option provides the stiffest connection and is used for large bed / low stiffness machines where the foundation can add to the stiffness of the machine.
Anti-vibration washers are required with this option to prevent vibration bridging through the bolted connection.
Grade A – Standard
Grade B – Stiff
Grade E – Very Stiff
GRADE F – Standard Damping Grade
| Size | Part Ref | Load (Kg) | L (mm) | W (mm) | H (mm) | N± (mm) | AF (mm) | Hole size(mm) | D(mm) | E(mm) | Mass (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1R | 1WL-T-1R-F | 900 | 115 | 80 | 55 | 5 | 17/8 | 14 | 45 | 17 | 2.1 |
| 2S | 1WL-T-2S-F | 1,300 | 115 | 115 | 61 | 6 | 19/10 | 18 | 50 | 24 | 3.5 |
| 3S | 1WL-T-3S-F | 2,300 | 150 | 150 | 61 | 6 | 19/10 | 23 | 60 | 24 | 5.8 |
| 4S | 1WL-T-4S-F | 4,000 | 200 | 200 | 61 | 6 | 22/12 | 23 | 75 | 27 | 10.0 |
| 5S | 1WL-T-5S-F | 5,000 | 200 | 200 | 87 | 10 | 30/17 | 22 | 97 | 27 | 14.3 |
| 6R | 1WL-T-6R-F | 6,000 | 200 | 250 | 87 | 10 | 30/17 | 24 | 95 | 27 | 17.9 |
| 7R | 1WL-T-7R-F | 9,000 | 250 | 330 | 85 | 9 | 30/17 | 26 | 125 | 105 | 30.5 |
GRADE G – Stiff Damping Grade
| Size | Part Ref | Load (Kg) | L (mm) | W (mm) | H (mm) | N± (mm) | AF (mm) | Hole size(mm) | D(mm) | E(mm) | Mass (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1R | 1WL-T-1R-G | 1,200 | 115 | 80 | 45 | 5 | 17/8 | 14 | 45 | 17 | 1.9 |
| 2S | 1WL-T-2S-G | 1,600 | 115 | 115 | 51 | 6 | 19/10 | 18 | 50 | 24 | 3.5 |
| 3S | 1WL-T-3S-G | 4,000 | 150 | 150 | 51 | 6 | 19/10 | 23 | 60 | 24 | 5.4 |
| 4S | 1WL-T-4S-G | 5,000 | 200 | 200 | 51 | 6 | 22/12 | 23 | 75 | 27 | 9.3 |
| 5S | 1WL-T-5S-G | 6,000 | 200 | 200 | 77 | 10 | 30/17 | 22 | 97 | 27 | 13.6 |
| 6R | 1WL-T-6R-G | 7,000 | 200 | 250 | 77 | 10 | 30/17 | 24 | 95 | 27 | 16.9 |
| 7R | 1WL-T-7R-G | 10,000 | 250 | 330 | 75 | 9 | 30/17 | 26 | 125 | 105 | 29.2 |
GRADE H – Very Stiff Damping Grade
| Size | Part Ref | Load (Kg) | L (mm) | W (mm) | H (mm) | N± (mm) | AF (mm) | Hole size(mm) | D(mm) | E(mm) | Mass (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1R | 1WL-T-1R-H | 3,000 | 115 | 80 | 42 | 5 | 17/8 | 14 | 45 | 17 | 1.8 |
| 2S | 1WL-T-2S-H | 4,000 | 115 | 115 | 48 | 6 | 19/10 | 18 | 50 | 24 | 3.2 |
| 3S | 1WL-T-3S-H | 7,000 | 150 | 150 | 48 | 6 | 19/10 | 23 | 60 | 24 | 5.3 |
| 4S | 1WL-T-4S-H | 12,000 | 200 | 200 | 48 | 6 | 22/12 | 23 | 75 | 27 | 9.0 |
| 5S | 1WL-T-5S-H | 12,000 | 200 | 200 | 74 | 10 | 30/17 | 22 | 97 | 27 | 13.3 |
| 6R | 1WL-T-6R-H | 14,000 | 200 | 250 | 74 | 10 | 30/17 | 24 | 95 | 27 | 16.9 |
| 7R | 1WL-T-7R-H | 25,000 | 250 | 330 | 72 | 9 | 30/17 | 26 | 125 | 105 | 28.8 |
Features & Benefits
- Enhanced mechanical advantage for easier levelling
- Enhanced machine stability which provides high stiffness and support in both horizontal and vertical directions
- Damping pads reduce vibration within the machine and isolation of the foundation below
- Easy installation and relocation of machines
- Flexibility in applications where high loads and/or damping is required
Machinery Applications
Machine tools, Boring & Milling, CNC lathes, Test equipment, Injection moulding, Printing, Grinding, Transfer, Rolling Mills and Long Bed machinery.
