Vibration protection of Precision Machinery

By their very nature, industrial machinery and equipment will generate shock and vibration which can affect performance.

The ideal choice for the installation and levelling of precision and long bed machinery.

Farrat Precision Levelling Elements (WL-LEs) provide a system of installation of large or heavy equipment which requires a very rigid connection to their foundations and which also require very accurate alignment for satisfactory performance.  

This includes machines which are subjected to significant changes in load distribution during operation.

Precision Levelling Elements

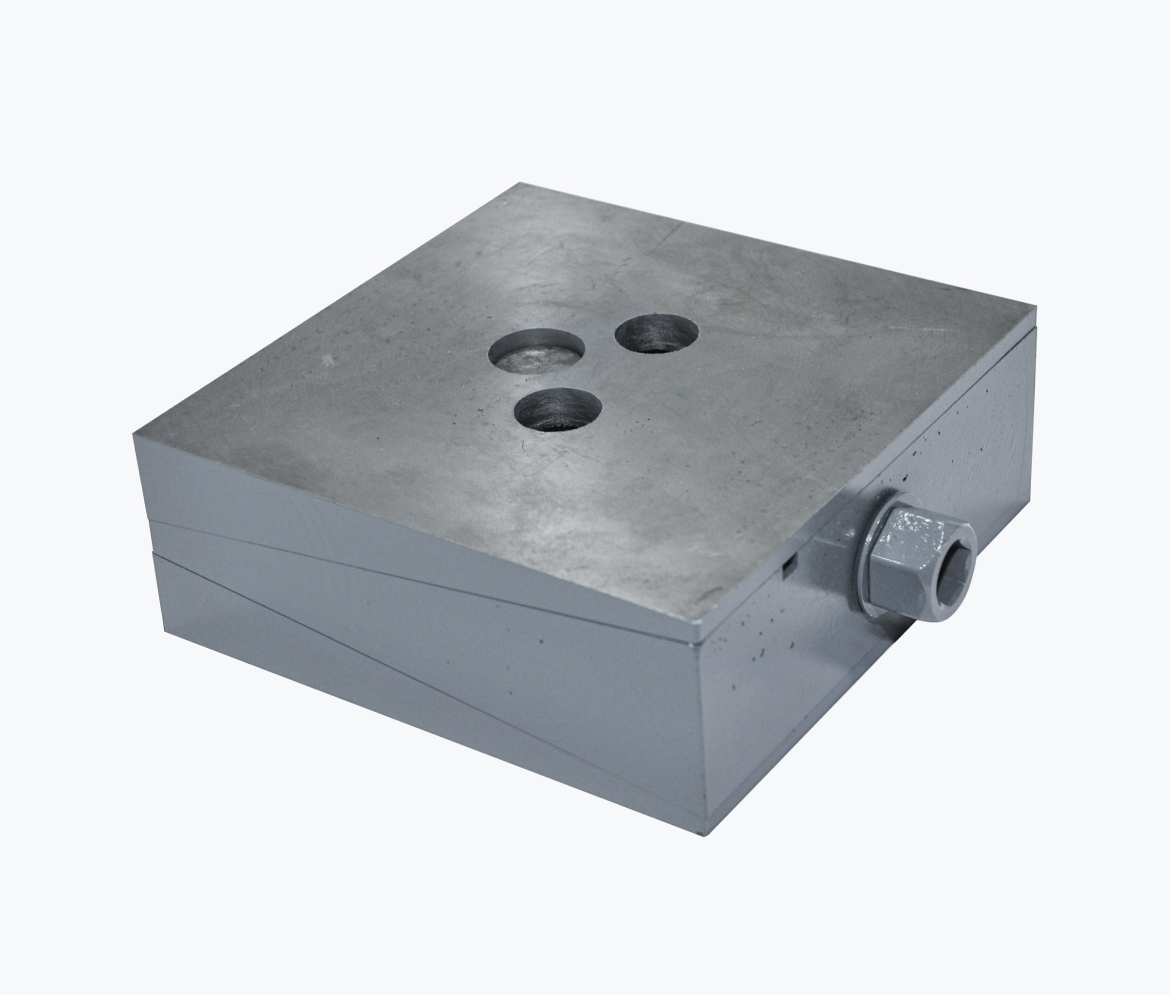

Farrat Precision Levelling Elements (WL-LE) can be used for supporting and levelling machinery and equipment during construction, erection and operation.

They are the same basic form as standard Wedgemount but the top and bottom faces are precision machined to provide an accurate, rigid support for maximum stiffness

Technical Information Request Quotation

Variants & Part Numbers

Size	Part Ref (Freestanding)	Part Ref (Bolt-On)	Part Ref (Bolt-Through)
1R	1WL-F-1R-P	1WL-B-1R-P	1WL-T-1R-P
2R	1WL-F-2R-P	–	–
2S	1WL-F-2S-P	1WL-B-2S-P	1WL-T-2S-P
3R	1WL-F-3R-P	–	–
3S	1WL-F-3S-P	1WL-B-3S-P	1WL-T-3S-P
4S	1WL-F-4S-P	1WL-B-4S-P	1WL-T-4S-P
5R	1WL-F-5R-P	–	–
5S	1WL-F-5S-P	1WL-B-5S-P	1WL-T-5S-P
6R	1WL-F-6R-P	1WL-B-6R-P	1WL-T-6R-P
7R	1WL-F-7R-P	1WL-B-7R-P	1WL-T-7R-P

Product Dimensions

Size	Load (Kg)	L (mm)	W (mm)	H (mm)	N+ (mm)	AF (mm)	Mass (Kg)	Bolt-On (Hole Size C)	Bolt-Through (Hole Size C)	D (mm)	E (mm)
1R	3,000	115	80	40	5	17/8	2.1	M12	14	45	17
2R	3,000	150	75	40	5	19/10	2.8	–	–	–	–
2S	4,000	115	115	46	6	19/10	3.6	M16	18	50	14
3R	6,000	200	95	46	6	22/12	5.4	–	–	–	–
3S	7,000	150	150	46	6	19/10	6.0	M20	22	60	24
4S	12,000	200	200	46	6	22/12	10.4	M20	22	75	27
5R	9,000	250	115	46	9	24/12	12.6	–	–	–	–
5S	12,000	200	200	70	10	30/17	14.7	M20	22	97	27
6R	14,000	200	250	72	10	30/17	18.3	M20	22	95	27
7R	25,000	250	330	70	9	30/17	31.2	M24	26	125	105

Features & Benefits

Enhanced mechanical advantage for easier levelling
Enhanced machine stability which provides high stiffness and support in both horizontal and vertical directions
Easy installation and relocation of machines

Machinery Applications

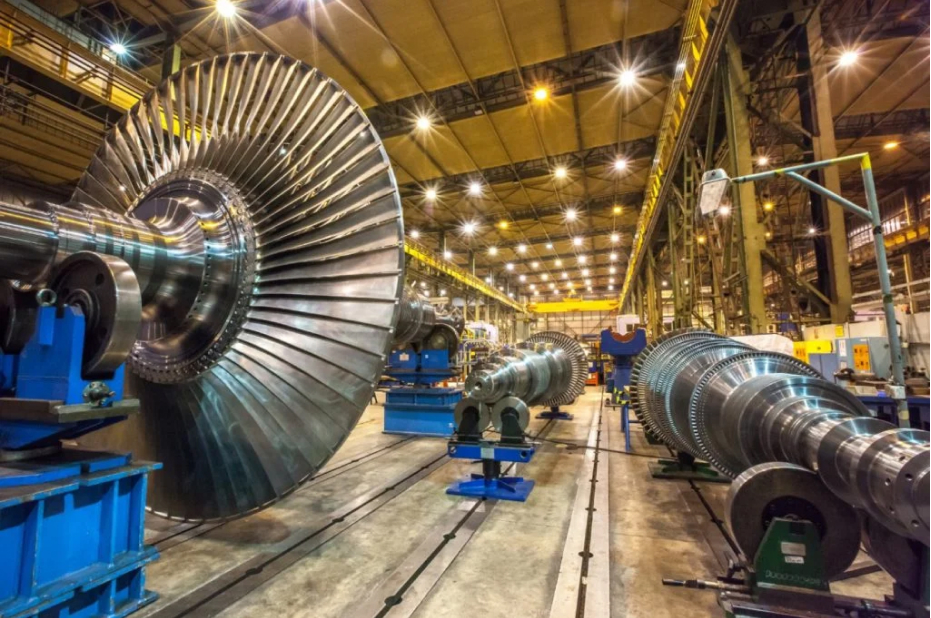

General machine tools, Printing machines, CNC lathes, Boring and Milling machines, Grinding machines, Transfer machines, Rolling Mills, Sensitive / Test equipment, Injection Moulding machines, Die-casting machines, Long Bed machinery, Buildings & structures, and Civil Engineering.
